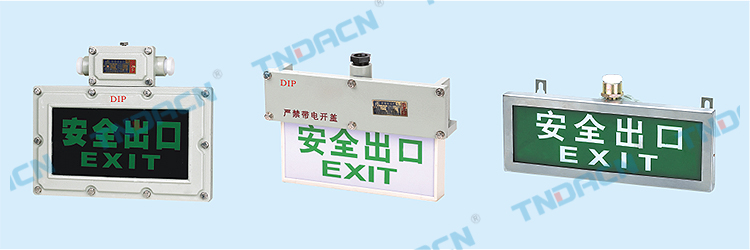

BYY-F系列粉塵防爆標志燈（DIP）

詳細信息

BYY-F系列粉塵防爆標志燈（DIP）
BYY-F type dust explosion-proof marking lamp (DIP)

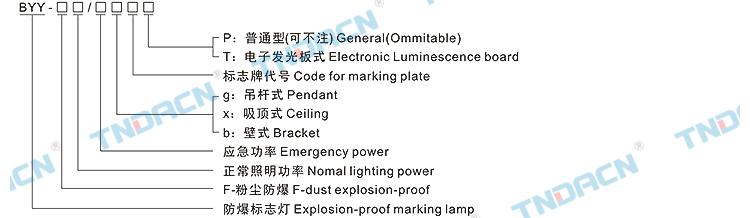

型號含義 Model implication
適用范圍 Applications
1.20區、21區、22區危險場所；
2.可燃性粉塵環境；
3.溫度組別：T1~T4/T5/T6；
4.應用于石油、化工、航天、軍工等場所。


1.Hazardous:division zone 20,21,&22;
2.Flammable dust atmospheres;
3.Temperature class:T1~T4/T5/T6;
4.Widely using in the fields of oil ,Chemical industry, spaceflight,war ind-ustry and so on.


產品特點 Features

1.殼體采用高強度合金鋁一次性壓鑄成型，表面經高速拋丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度高強度好、防爆性能優良，表面塑粉附著力強具有良好的防腐能力，表面光潔，美觀大方；
2.采用高亮度發光板，具有低功耗，長幫壽命，免維護等特點；
3.內裝免維護鎳氫電池組，正常自動充電，事故或停電時自動點亮指示工作；

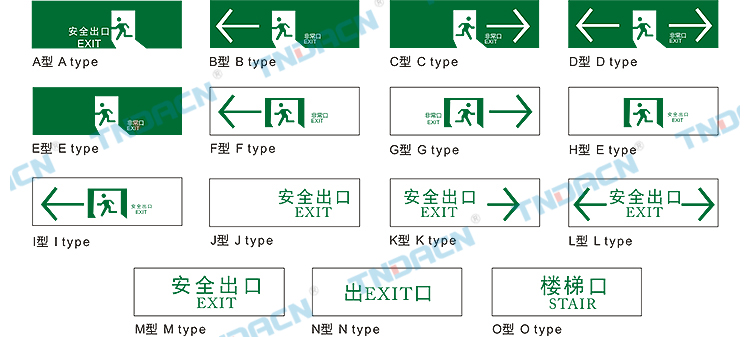

4.誘導指示標志由用戶自由選擇：
5.鋼管或電纜布線.
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powder
adhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Inducing signals can be selected by users;
3.LED lighting diode, is in low consumption, the life can be up to 1000 hours long emergency time and it is non-maintenance;
4.Built-in normal condition and auto -lighting while accident happened or power tic ally in normal condition and auto-lighting while accident happened or power is failure conditions;
5.Wiring with steel tube of cable.
主要技術參數 Main technical parameters
電壓(V)Voltage 光源 Luminaries 功率(W) Power 應急時間
emergency
lamp(min)
正常
Normal		 應急
Emergency
 		 正常/應急
normal/ emergency		 正常
normal		 應急
emergency
220 DC3.6 發光板
light board		 3 3 90



防爆標志
Ex-mark		 進線口螺紋
Inlet thread (G")		 電纜外徑
Cable outer dia.(mm)
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(歐標) 3/4" φ10~φ14

外形及安裝尺寸 Outline & installation dimensions
