當前位置： 首頁 > 產品總匯 > 粉塵防爆電器類 > BXX51-F系列粉塵防爆動力檢修箱（DIP）防爆配電箱

BXX51-F系列粉塵防爆動力檢修箱（DIP）防爆配電箱

詳細信息

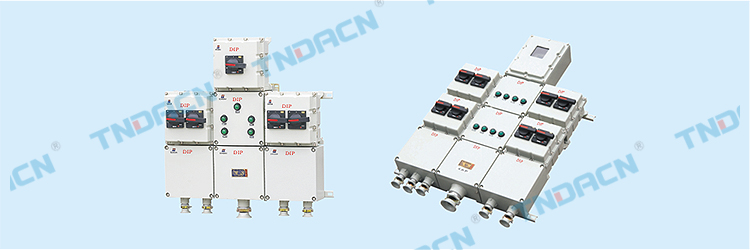

BXX51-F系列粉塵防爆動力檢修箱（DIP）
BXX51-F type dust explosion-proof power overhaul box(DIP)

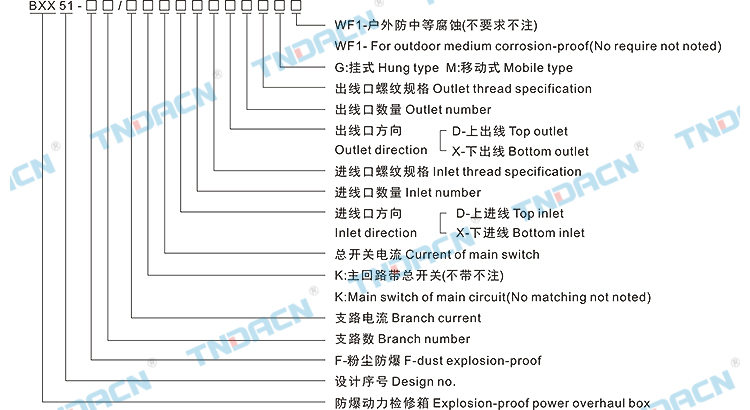

型號含義 Modelimplication
適用范圍 Applications
1.20區、21區、22區危險場所；
2.可燃性粉塵環境；
3.戶內、戶外(IP65、IP66*)；
4.溫度組別：T1~T4/T5/T6。
5.應用于石油、化工、航天、軍工等場所。
1.Hazardous:division zone 20,21,&22;
2.Flammable dust atmospheres;
3.Indoor or outdoor(IP65,IP66*);
4.Temperature class:T1~T4/T5/T6.
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.
產品特點 Features
1.殼體采用高強度合金鋁一次性壓鑄成型，表面經高速拋丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度高強度好、防爆性能優良，表面塑粉附著力強具有良好的防腐能力，表面光潔，美觀大方；
2.內可裝元件為：C120高分?jǐn)嘈⌒蛿嗦菲鳌SX、CM1、DZ47塑殼斷路器及信號燈等，若需安裝其他特殊元件，可與公司工程技術人員聯系；
3.具有過載保護、短路保護、漏電保護等功能；
4.本產品為復合型模塊化結構，可根據擁護要求，對各回路進行自由組合；
5.可根據用戶要求特制，如加裝電涌保護器、電流表、電壓表、互感器等；常規產品操作手柄為工程塑料，操作手柄可根據要求加裝掛鎖；
6.鋼管，電纜布線均可。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Built-in C120and NSX, Cm1 circuit breaker and indicator lights, etc. Please contact our company's technical engingeers if you want to install other special components;
3.With overload, short-circuit and leakage protection functions;
4.This product is in the structure of combined modularization. Each branch circuit can be assembled freely according to the user's requests;
5.It can be made on user's request, including adding electric surge protector. ammeter, voltmeter and mutual inducor, etc. The operation handle of general products is made of engineering plastics, What's more, the handle can be addad padlock according to the request, the padlock handle of the mini circuit-breaker is made of highly intensive aluminium alloy;
6.Wiring with steel tube or cable.
主要技術參數 Main technical parameters
額定電壓(V)
Rated voltage		 額定電流(A)
Branch current		 支路數
Branch Number		 進線口螺紋(G")
Inlet's thread		 出線口螺紋(G")
Outlet's thread
380 60~100 2
4		 2~3 1~11/2

防爆標志
Ex-mark		 防腐等級
Erosion-proof-class		 防護等級
Protection class
DIP A20 TA,T6/T5/T4 等效于 Ⅱ1D Ex tD A20 T6/T5/T4(歐標) WF1 IP54
*IP55

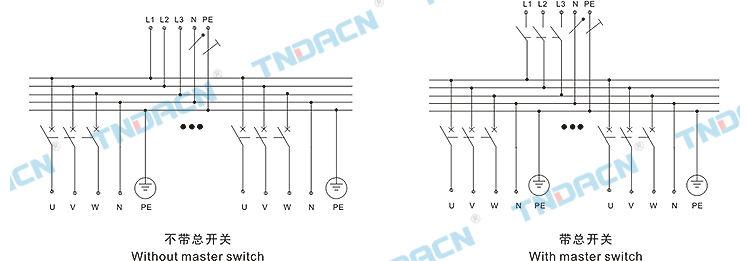

電氣原理圖 Electrical diagram

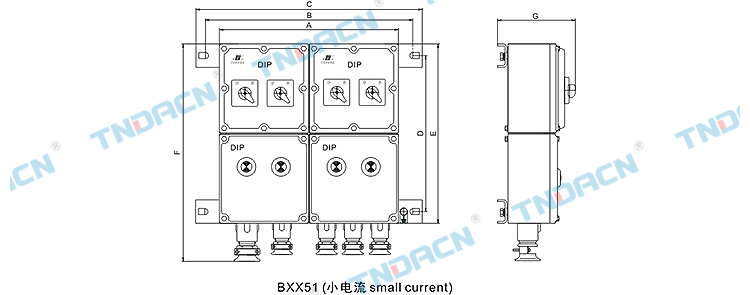

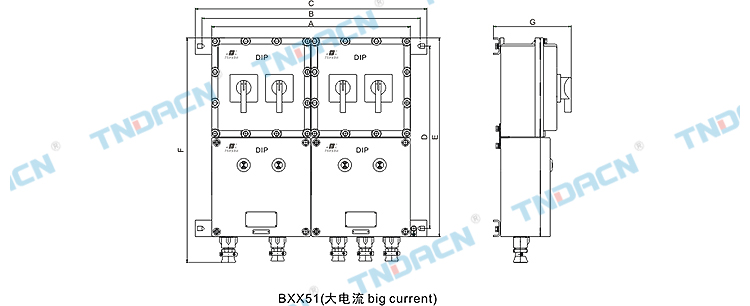

外形及安裝尺寸 Outines & installation dimensions
型號 type A B C D E F G 型號 type A B C D E F G
BXX51-3KXX
BXX51-4KXX
BXX51-6KXX
BXX51-8KXX		 400
600
600
600		 422
617
617
617		 455
647
647
647		 385
385
575
575		 400
400
600
800		 470
470
680
900		 165
165
165
165		 BXX51-3KXD
BXX51-4KXD
BXX51-6KXD
BXX51-8KXD		 400
600
600
600		 422
617
617
617		 455
647
647
647		 385
385
575
768		 400
400
600
800		 525
525
820
1020		 165
165
165
165
型號 type A B C D E F G 型號 type A B C D E F G
BXX51-3KXX
BXX51-4KXX
BXX51-6KXX
BXX51-8KXX		 600
600
900
900		 675
675
967
967		 720
720
1008
1008		 555
855
855
855		 600
900
900
900		 740
1050
1050
1350		 275
275
275
275		 BXX51-3KXD
BXX51-4KXD
BXX51-6KXD
BXX51-8KXD		 600
600
900
900		 675
675
967
967		 720
720
1008
1008		 555
855
855
1155		 600
900
900
1200		 850
1160
1160
1470		 275
275
275
275
