詳細信息

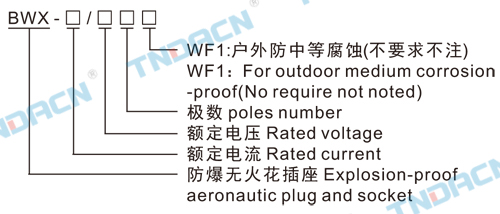

型號含義 Model implication
適用范圍 Applications
1.1區、2區或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC類爆炸性氣體環境或或燃性粉塵環境;
3.戶內、戶外(IP54,IP65*)
4.溫度組別：T1~T4
5.應用于石油、化工、航天、軍工等場所。
1.Hazardous:division 1&2 or zone 20、21、22；
2.Explosive gas or steam atmosphere: class ⅡA,ⅡB,ⅡC or
flammable dust atmospheres;
3.Indoor or outdoor(IP54,IP65*)
4.Temperature class: T1~T4
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.
產品特點 Features
1.殼體采用高強度合金鋁一次性壓鑄成型，表面經高速拋丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度高強度好、防爆性能優良，表面塑粉附著力強具有良好的防腐能力，表面光潔，美觀大方；
2.接觸件表面鍍銀和導線端接線方式為壓接；
3.具有插拔快捷，接線方便，電接觸可靠，良好的絕緣性，防水防塵，使用壽命長等優點；
4.鋼管或電纜布線。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Contact with the surface of silver and lead wiring for the crimp terminal.
3.With the plug fast, easy wiring, electrical contacts, reliable, and absolutely good Geography, waterproof and dustproof,and long life.
4.Wiring with steel tube or cable.
主要技術參數 Main technical parameters

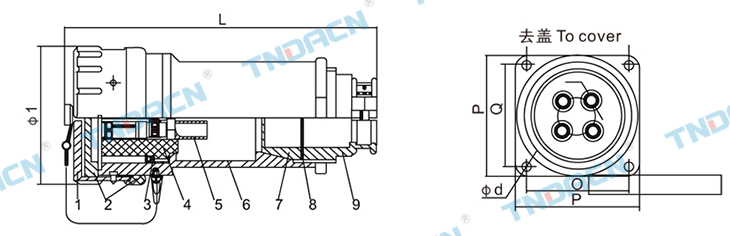

外形及安裝尺寸 Outline&installation dimensions
