詳細信息

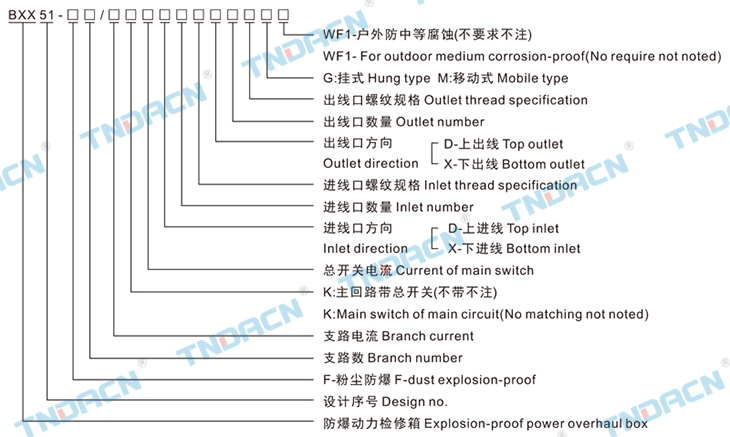

型號含義 Model implication
適用范圍 Applications
1.1區、2區危險場所或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3.戶內、戶外(IP65、IP66*)；
4.溫度組別：T1~T4/T5/T6。
5.應用于石油、化工、航天、軍工等場所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or inflammabledust environment;
3.Indoor or outdoor(IP65,IP66*);
4.Temperature class:T1~T4/T5/T6.
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.
產品特點 Features
1.殼體采用高強度合金鋁一次性壓鑄成型，表面經高速拋丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度高強度好、防爆性能優良，表面塑粉附著力強具有良好的防腐能力，表面光潔，美觀大方；
2.內可裝元件為：C120高分?jǐn)嘈⌒蛿嗦菲?、NSX、CM1、DZ47塑殼斷路器及信號燈等，若需安裝其他特殊元件，可與公司工程技術人員聯系；
3.具有過載保護、短路保護、漏電保護等功能；
4.本產品為復合型模塊化結構，開關腔為隔爆型，母線腔和接線腔為增安型，可根據擁護要求，對各回路進行自由組合；
5.可根據用戶要求特制，如加裝電涌保護器、電流表、電壓表、互感器等；常規產品操作手柄為工程塑料，操作手柄可根據要求加裝掛鎖；
6.鋼管，電纜布線均可。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Built-in C120and NSX, Cm1 circuit breaker and indicator lights, etc. Please contact our company's technical engingeersif you want to install other special components;
3.With overload, short-circuit and leakage protection functions;
4.This product is in the structure of combined modularization, the switch case is flame-prooftype,and the bus bar case andconnecting case are increased safety type. Each branch circuit can be assembled freely according to the user's requests;
5.It can be made on user's request, including adding electric surge protector. ammeter, voltmeter and mutual inducor, etc.The operation handle of generalproducts is made of engineering plastics, What's more, the handle can be addad padlockaccording to the request, the padlock handle of theminicircuit-breaker is made of highly intensive aluminium alloy;
6.Wiring with steel tube or cable.
主要技術參數 Main technical parameters

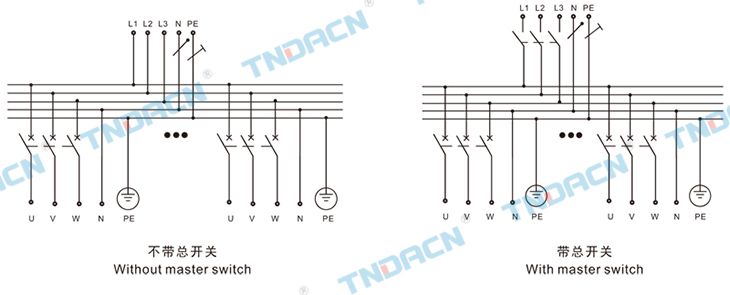

電氣原理圖 Electrical diagram

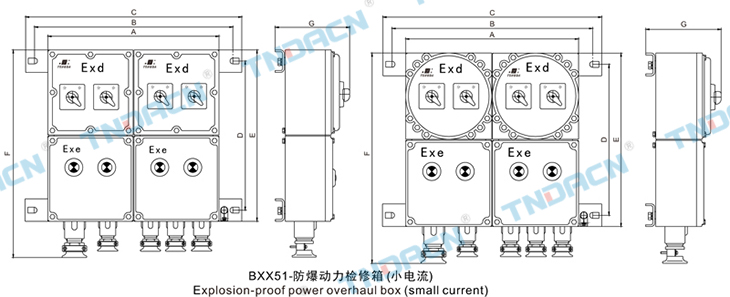

外形及安裝尺寸 Outines & installation dimensions

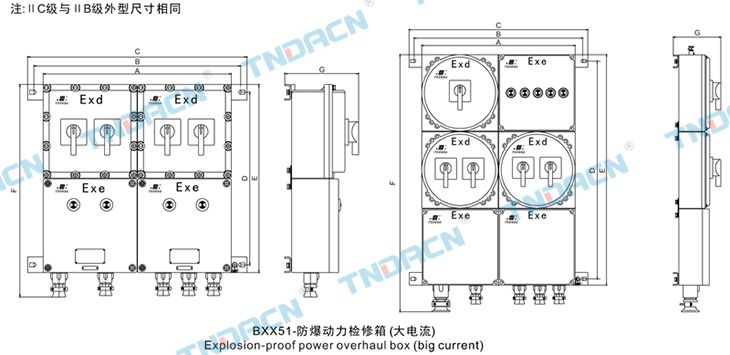

注:ⅡC級與ⅡB級外型尺寸相同
注:ⅡC級與ⅡB級外型尺寸相同
