當前位置： 首頁 > 產品總匯 > 防水防塵防腐類 > FJX-L系列防水防塵防腐接線箱

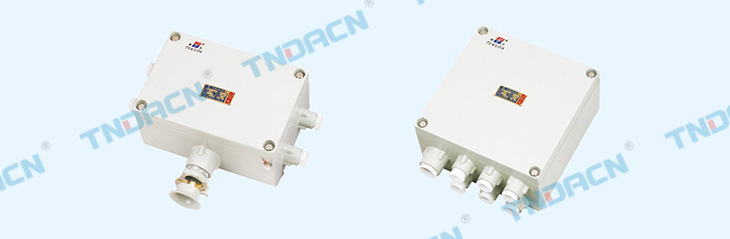

FJX-L系列防水防塵防腐接線箱

詳細信息

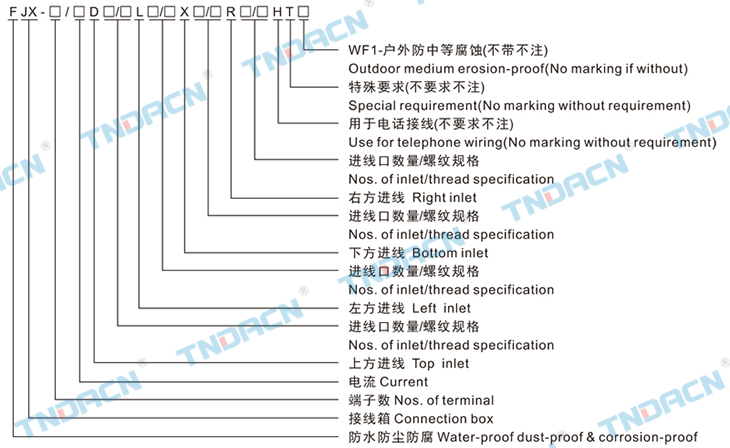

型號含義 Modelim plication

適用范圍 Applications

1.環境溫度-25°至55°。
2.安裝高度不超過海拔2000m。
3.多水、多塵、潮濕等環境，防弱酸、弱堿腐蝕。
4.廣泛應用于食品、制藥、車站、加油站、商場、大型廳堂等工廠企業及商品場所。
5.根據配置的鎮流器，必須選擇匹配的光源，用戶電源電壓波動范圍必須滿足國家標準要求。
1.Ambient temperature is-25°to 55°.
2.The height of installment can't over 2000 meters above sea level.
3.They can withstand the corrosion of weak acid, weak alkali and the environment of more water, more dust and humidity.
4.They are widely used in the lines of petroleum, chemistry, hell, food. Medicine, industrial and commercial concourse andso on.
5.According to suited ballast, they must choose illumination accordingly. The user's power voltage fluctuant range must accordto the national standard.

產品特點 Features

1.殼體采用高強度鋁合金一次性壓鑄成型，外殼結構緊湊合理，強度好，防爆性能優良；表面經高速拋丸清理后高壓靜電噴
塑，表面塑粉附著力強，具有良好的防腐性能，外表整潔，美觀大方；
2. 結合面采用曲路密封結構，具有較強的防水、防塵性能；
3. 模塊結構可根據用戶需要自由組合；
4. 可根據用戶要求特制；
5.鋼管或電纜布線。
1. Enclosure is cast with high intensity aluminum alloy, surface is sprayed with plastic by high voltage static electicity, after the highly impeller cleaning. The structure of enclosure isreasonable, high-intensive and perfect-explosive and the surfaceplastic of good adhesive force is excellent in explosion-proof and appearance;
2. Jointing point adopts blend sealing structure, it's with perfectwater & dust proof functions;
3. Module structure can be freely combinated bases on users needs;
4. It can be made on request;
5. Wiring with steel tube or cable.

主要技術參數 Main technical parameters

電流 (A)
Current		 電壓 (V)
Voltage		 防護等級
Degree of protection		 防腐等級
Erosion-proof class		 出線口螺紋
Outlet thread		 電纜外徑
Cable outer dia
10,20,32
63,100
125,200
300,400		 380 IP65
IP66*		 WF1r M16~M63 G1/2~4"

φ8~φ38

*:訂購時需提出。Indicate it when ordering.

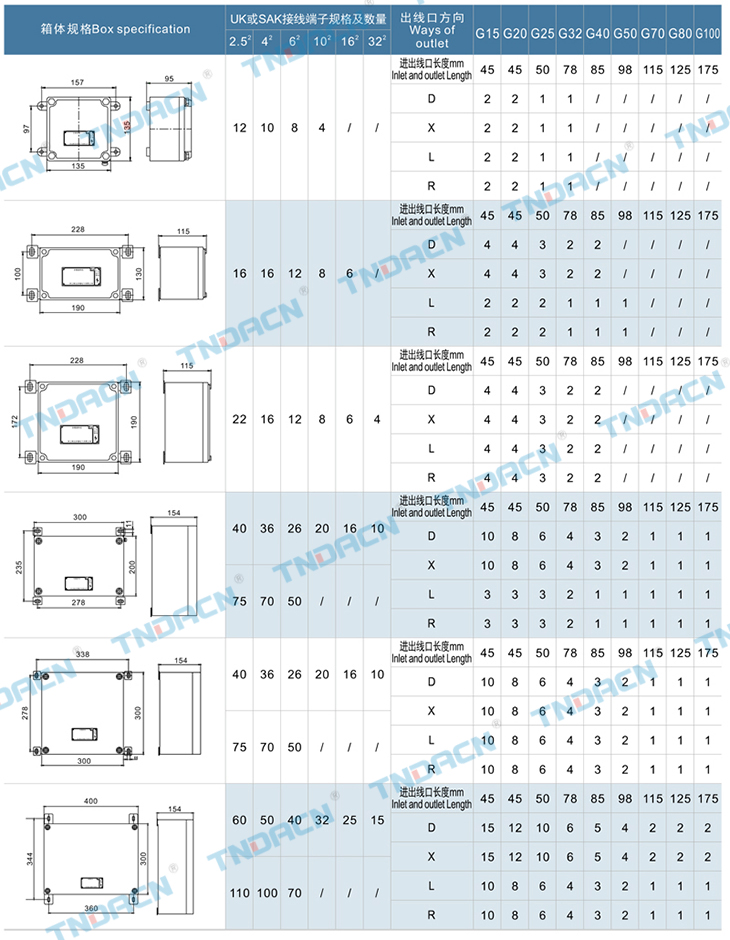

外形及安裝尺寸 Outline & installation dimensions

英制接頭 Pipe connector(G)

管螺紋
Pipe thread		 通徑 Diameter 電纜外徑
Cable outer diameter
G1/2 15 φ7~φ10
G3/4 20 φ10~φ14
G1 25 φ14~φ18
G1 1/4 32 φ15~φ23
G1 1/2 40 φ18~φ30
G2 50 φ25~φ38
G2 1/2 70 φ30~φ46
G3 80 φ38~φ56
G4 100 φ61~φ80

公制接頭 Connector(M)

規格
Specification		 通徑 Diameter 電纜外徑
Cable outer diameter
M16 M16×1.5 φ5~φ8
M20 M20×1.5 φ6~φ12
M25 M25×1.5 φ9~φ13
M32 M32×1.5 φ10~φ18
M40 M40×1.5 φ17~φ25
M50 M50×1.5 φ23~φ32
M63 M63×1.5 φ32~φ44



公制接頭 Connector(M)

管螺紋
Pipe thread		 管通徑
Pipe diameter
(mm)		 電纜外徑
Cable outer dia.
(mm)
G1/2"
G3/4"
G1"
G1 1/4"
G1 1/2"
G2"		 15
20
25
32
40
50		 φ7~φ10
φ10~φ14
φ14~φ18
φ15~φ23
φ18~φ30
φ25~φ38
