當前位置： 首頁 > 產品總匯 > 防水防塵防腐類 > LNZ 系列防水防塵操作柱

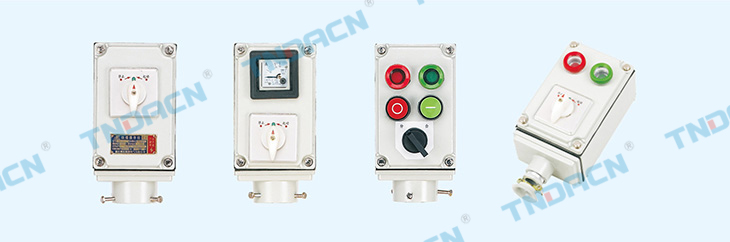

LNZ 系列防水防塵操作柱

詳細信息

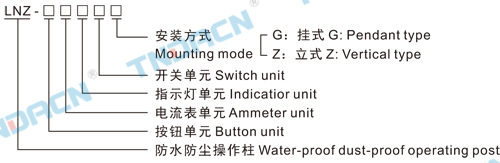

型號含義 Modelim plication

適用范圍 Applications

1.環境溫度-25°至55°。
2.安裝高度不超過海拔2000m。
3.強酸、強堿、鹽、氨、氯離子腐蝕，多水、多塵、潮濕等環境。
4.廣泛應用于石油、化工、碼頭、食品、制藥、軍工等工廠企業。
1.Ambient temperature is-25°to 55°.
2.The height of installment can't over 2000 meters above sea level.
3.They can withstand the corrosion of strong acid, strong alkali, salt, ammonia, chlirine, and the environment of more water,more dust and humidity.
4.They are widely used in the lines of pertoleum, chemistry, dock, food, medicine, warindustry and so on.

產品特點 Features

1.殼體采用ZL102鋁合金壓鑄而成，結構輕巧，外形美觀。
2.殼體表面酸洗、鈍化后采用高壓靜電噴環氧樹脂塑粉處理、抗酸、堿、鹽腐蝕，防爆等級為F1。
3.本產品采用曲路密封結構，直接用緊固件筋骨，具有良好的防水防塵性能，防護等級IP65。
4.所有外露緊固件均用不銹鋼，密封件采用硅橡膠，耐油、耐酸、耐堿、耐高溫、抗老化。
5.本系產品適用于交流50Hz，電壓380V以下，直流440V以下，電流10A以內的控制電路中，作為工作現場中電動機的起停、
控制轉換、信號切換、儀表計量顯示等之用。
6.內裝元件由我公司定型。
7.內裝元件主要有：萬能轉換開關、按鈕、電流表、指示燈等，可按用戶要求裝其他儀表。可實現各種元件的任意組合，滿
足用戶設計要求。
8.一般情況下，本系列不品的進出線方向為下進下出、電纜布線。用戶有特殊要求請注明。
9.產品出廠銘牌上保體現總單元內容，各分單元代號為訂貨參數。
產品特點 Features
1.The shells are made of ZL102 alloy aluminium, with delicated structure and beautiful shape.
2.The surface of the shells after acid-washing and getting rid of rust uses the treatment of high-pressure static and epoxyresin. It can withstand the corrosion of acid, alkali, salt and so on, the anti-corrosion class is F1.
3.The products adopts curve-sealing structure, and are tighten by the fix terminal, they have performance of water-proofand dustproof, the protection class reaches IP65.
4.All the leakage fixers adopt stainless steel, sealers adopt silicon rubber they can withstand oil, acid, high temperatureand are not easy to age.
5.The products are used in the controlling circuits with 50Hz AC, less than 350V voltage, less than 400V DC, less than10A current. They are used to display the starting and stopping of motor, controlling shift, signal shift, meter measure.
6.The elements used in installing inside, which are decided by our company.
7.The inside installment elements are mainly shift switches, buttons current meters and indicator. The oter meters can beinstalled according to the demand of the users. Meanwhile, they can cater to the designing demand of the users to assemblefreely.
8.In general, In-Out wires of the products of the series go under-in and under-out, installment with cable. The special demandof the users must be noted.
9.The factory brtand of the products manifest the content of the whole unit, each unit code is ordering parameter.

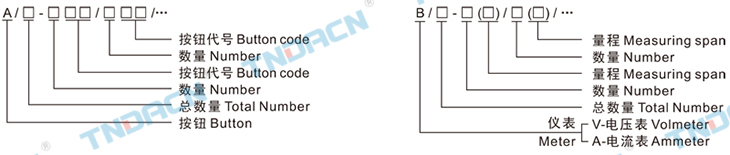

按鈕部分含義 Button implication 儀表部分含義 Meter implication

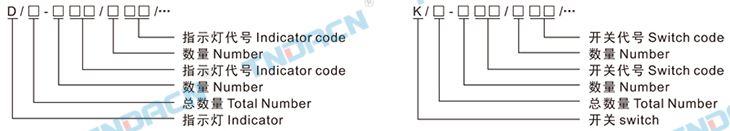

指示燈部分含義 Indicator implication 開關部分含義 Switch implication

主要技術參數 Main technical parameters

使用類別
Using type		 額定電壓(V)
Rated voltage		 額定功率(W)
Rated power		 防護等級
Protection
grade		 電纜外徑(φ,mm)
Cable's outer
diameter		 進線口螺紋(G")
Inlet's thread		 電纜外徑
Cable outer
AC-3 AC220/380 10A IP65 F1

φ12~φ17

 1"
AC-4

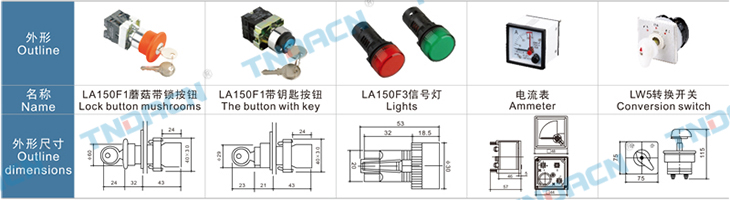

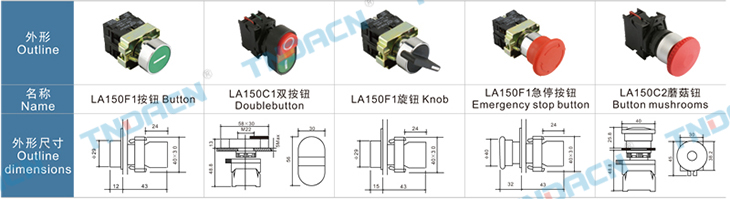

內裝元件 Built-in components

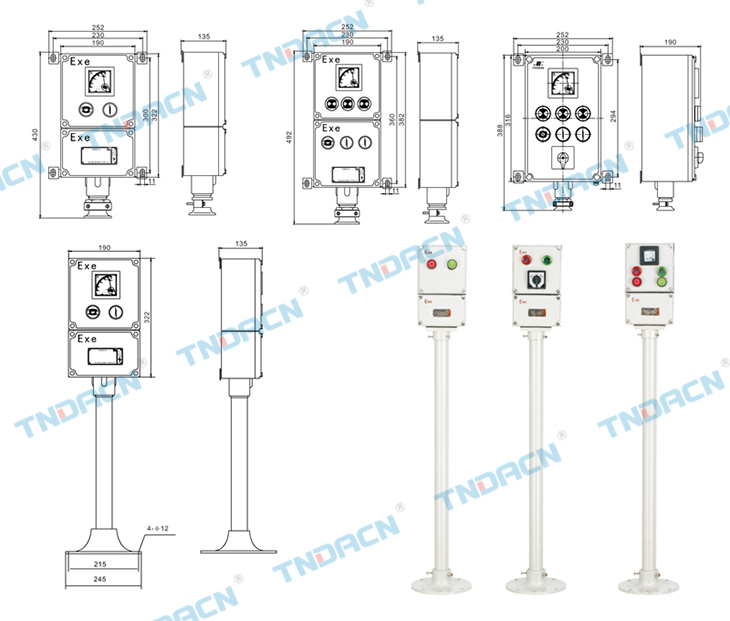

外形及安裝尺寸 Outline & installation dimensions
